A two-seat electric golf cart with a 6.3 kW AC motor and a 48V 105Ah lithium battery. The supplied specification lists a maximum speed of 45 km/h and a range of 60 km. Features include a folding acrylic windshield, LED lighting and a 10.1-inch display with CarPlay.
This two-seat model combines a steel frame, injection-moulded body panels and an aluminium-alloy floor. Double A-arm front suspension and trailing-arm rear suspension are specified in the supplied model sheet.
| Спецификация | Подробности |
|---|---|
| Сидения | 2 seats |
| Батарея | 48V 105Ah lithium battery |
| Мотор | 6.3 kW AC motor |
| Charger | On-board intelligent charger |
| Communication | CAN |
| Время зарядки | 8–10 hours |
| Charging input | 110V or 220V selectable |
| Дисплей | 10.1-inch display with CarPlay |
| Максимальная скорость | 45 км/ч |
| Указанный диапазон | 60 km |
| Braking distance | ≤5 m |
| Minimum turning radius | 5 m |
| Ground clearance | 150 mm |
| Габаритные размеры (L × W × H) | 2550 × 1180 × 1860 mm |
| Wheelbase | 1680 mm |
| Track width (front / rear) | 940 / 1035 mm |
| Снаряженная масса | 530 kg |
| Windshield | Hinged folding acrylic windshield |
| Roof | Injection-moulded roof |
| Сиденья | Heat-resistant, UV-resistant moulded foam seats |
| Floor | High-strength aluminium-alloy floor |
| Body | Steel frame with injection-moulded body panels |
| Mirrors | Manual exterior mirrors with turn signals |
| Lighting | LED combination lights |

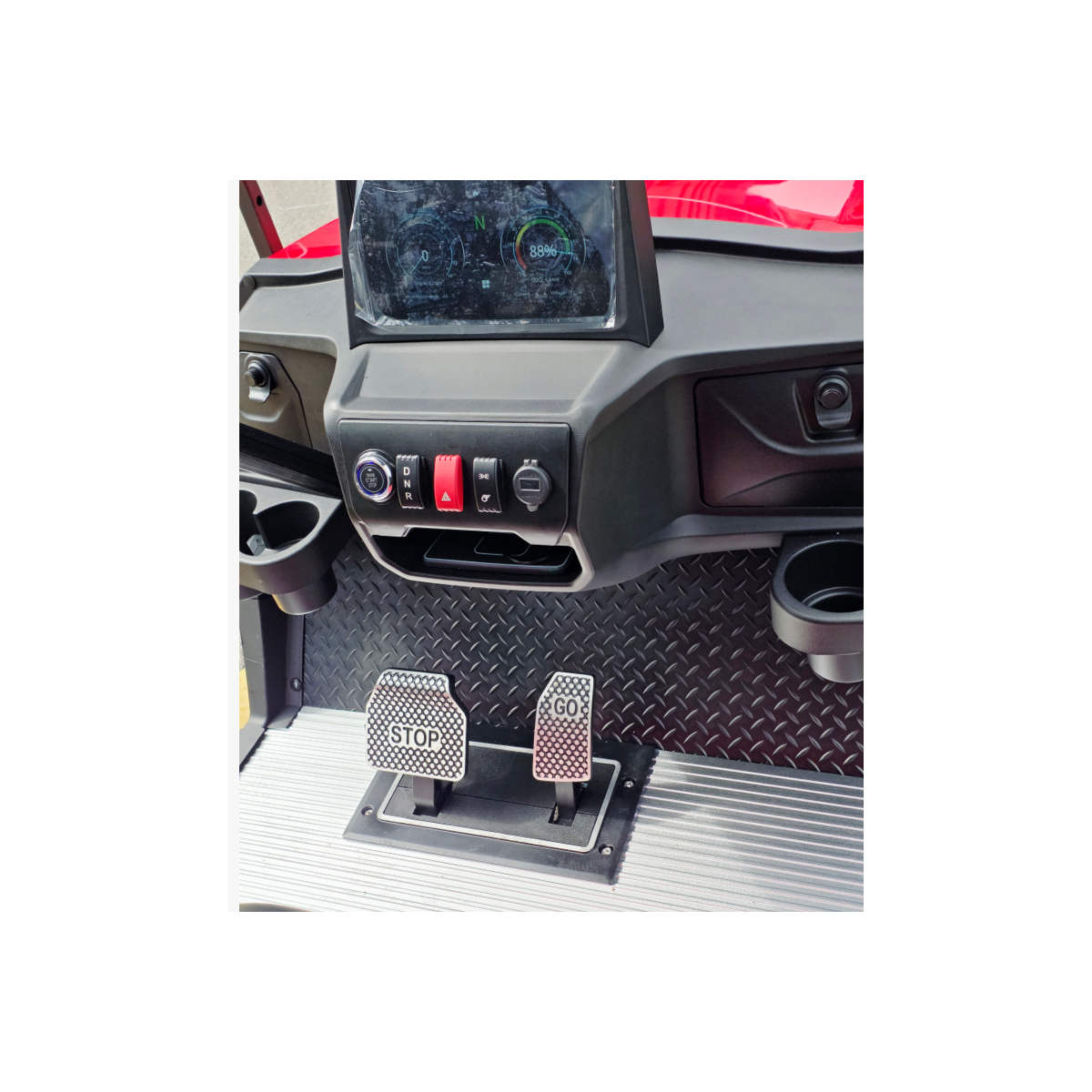

| Controls | Start, light and forward/reverse switches |
| Frame | 40 × 60 formed tube frame with electrophoretic coating and powder coating |
| Steering wheel | Carbon-fibre or retro-style option |
| Seat belts | 2-point seat belts |
| Drive axle | Split rear axle |
| Steering | Rack-and-pinion steering with automatic clearance compensation; optional power steering |
| Передняя подвеска | Double A-arm independent suspension |
| Задняя подвеска | Trailing-arm independent suspension |
| Brakes | Front disc / rear drum brakes; dual-circuit hydraulic braking and electromagnetic brake |
| Tyres / wheels | 215-40/12 tyres with aluminium-alloy wheels |
Figures above are taken from the supplied specification sheet for the US-version two-seat model. Actual range depends on operating conditions.
The model sheet lists selectable 110V/220V charging input, carbon-fibre or retro-style steering wheels and optional power steering. Please confirm the required configuration when requesting a quotation.
